Iteaduino UNO

 Iteaduino UNO

Iteaduino UNO

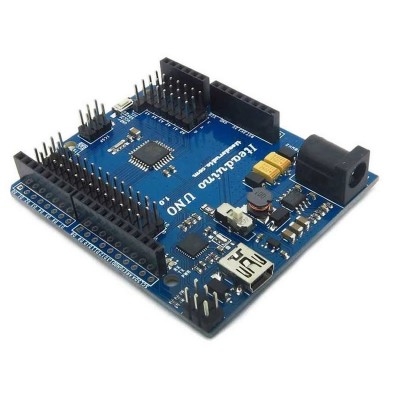

The Iteaduino Uno is a microcontroller board based on the Arduino UNO. It has 14 digital input/output pins (6 PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it up to get started.

19 items in stock

Price:

15,90 €

Add to cart

Tinklapyje visos kainos nurodytos su 21% PVM.

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 point that can be converted into a voucher of 0,20 €.

More info

The Iteaduino Uno is a microcontroller board based on the Arduino UNO. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Features

  • New external IO pin map
  • Efficient DC-DC Power supply with wide range input
  • 3.3V/5V Operating Voltage selection
  • All pins out for Sensor and Servo
  • UART/IIC interface breakout

Data sheet

  • Microcontroller - ATmega328
  • Flash memory - 32 KB
  • SRAM/SDRAM - 2 KB
  • EEPROM - 1 KB
  • Clock Speed - 16 MHz
  • Digital I/O Pins - 16
  • PWM pins - 6
  • ADC pins - 6
  • Operating voltage - 5V
  • Supply voltage - 7-12V
  • Supply voltage (threshold) - 6-20V
  • Compatible - Fully compatible with the Arduino
  • Country of origin - China
  • UART - USB converter - Atmega16U2
