Raspberry PI 2.8 TFT LCD

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook

Send to a friend

Raspberry PI 2.8 TFT LCD

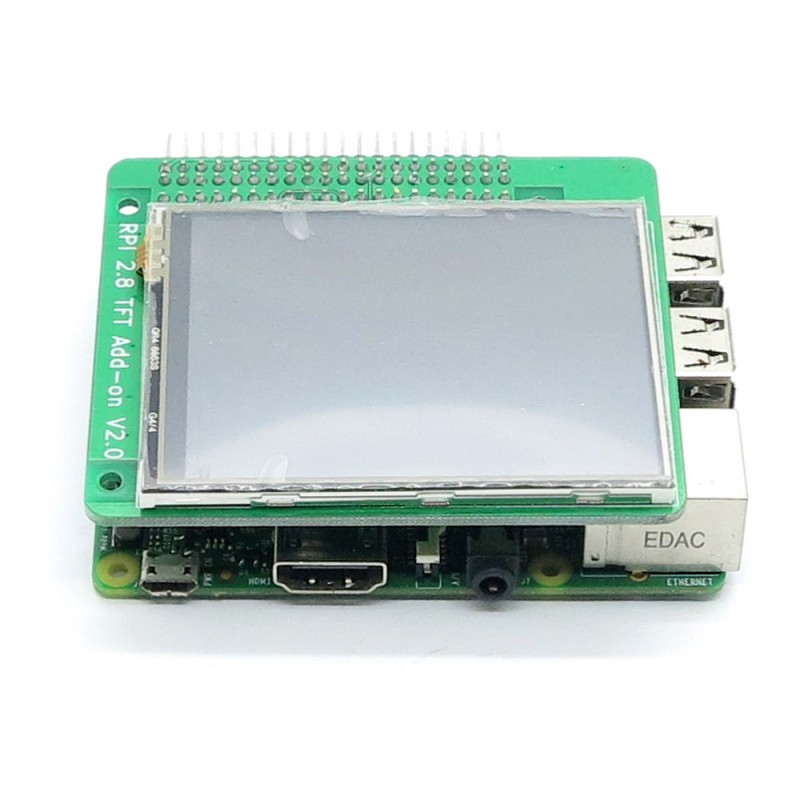

Raspberry PI 2.8 TFT is customized for Raspberry Pi 2 and Raspberry PI 3. It is based on 2.8 TFT LCD display module. The screen is driven based on an 8-bit data bus and a 4-bit ILI9323DS to control bus interface, which can display 263K colors. With touch function, it can be used to display the desktop of Raspberry Pi and realize clicking, touch and feedback.

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of 0,40 €.

More info

Raspberry PI 2.8 TFT is customized for Raspberry Pi 2 and Raspberry PI 3. It is based on 2.8 TFT LCD display module. The screen is driven based on an 8-bit data bus and a 4-bit ILI9323DS to control bus interface, which can display 263K colors. Module controls contents to be displayed via GPIO on Raspberry Pi. With touch function, it can be used to display the desktop of Raspberry Pi and realize clicking, touch and feedback.

It breakout with all Raspberry Pi B+ pins and leads serial interface IIC port.

Raspberry PI Pin N.O.	Pin name	Description
1	3.3V
2	5V
3	GPIO02	SDA
4	5V
5	GPIO03	SCL
6	GND
7	GPIO04
8	GPIO14	TX
9	GND
10	GPIO15	RX
11	GPIO17	IRQ
12	GPIO18
13	GPIO27	DB17
14	GND
15	GPIO22	DB12
16	GPIO23	DB13
17	3.3V
18	GPIO24	DB14
19	GPIO10	Touch_DIN
20	GND
21	GPIO09	Touch_DOUT
22	GPIO25	DB15
23	GPIO11	Touch_SCK
24	GPIO08
25	GND
26	GPIO07	Touch_CS
27	ID_SD
28	ID_SC
29	GPIO05	RST
30	GND
31	GPIO06	RS
32	GPIO12	WR
33	GPIO13	CS
34	GND
35	GPIO19
36	GPIO16
37	GPIO26	DB16
38	GPIO20	DB10
39	GND
40	GPIO21	DB11
